Hivenet Router selects an inference agent through hard routing constraints and a three-layer policy pipeline. Every request is first limited to agents that serve the requested model and capability. Hivenet Router then applies static matching, live metric gates, and a ranking strategy. If the primary step cannot serve the request, the router can move through an ordered fallback chain.

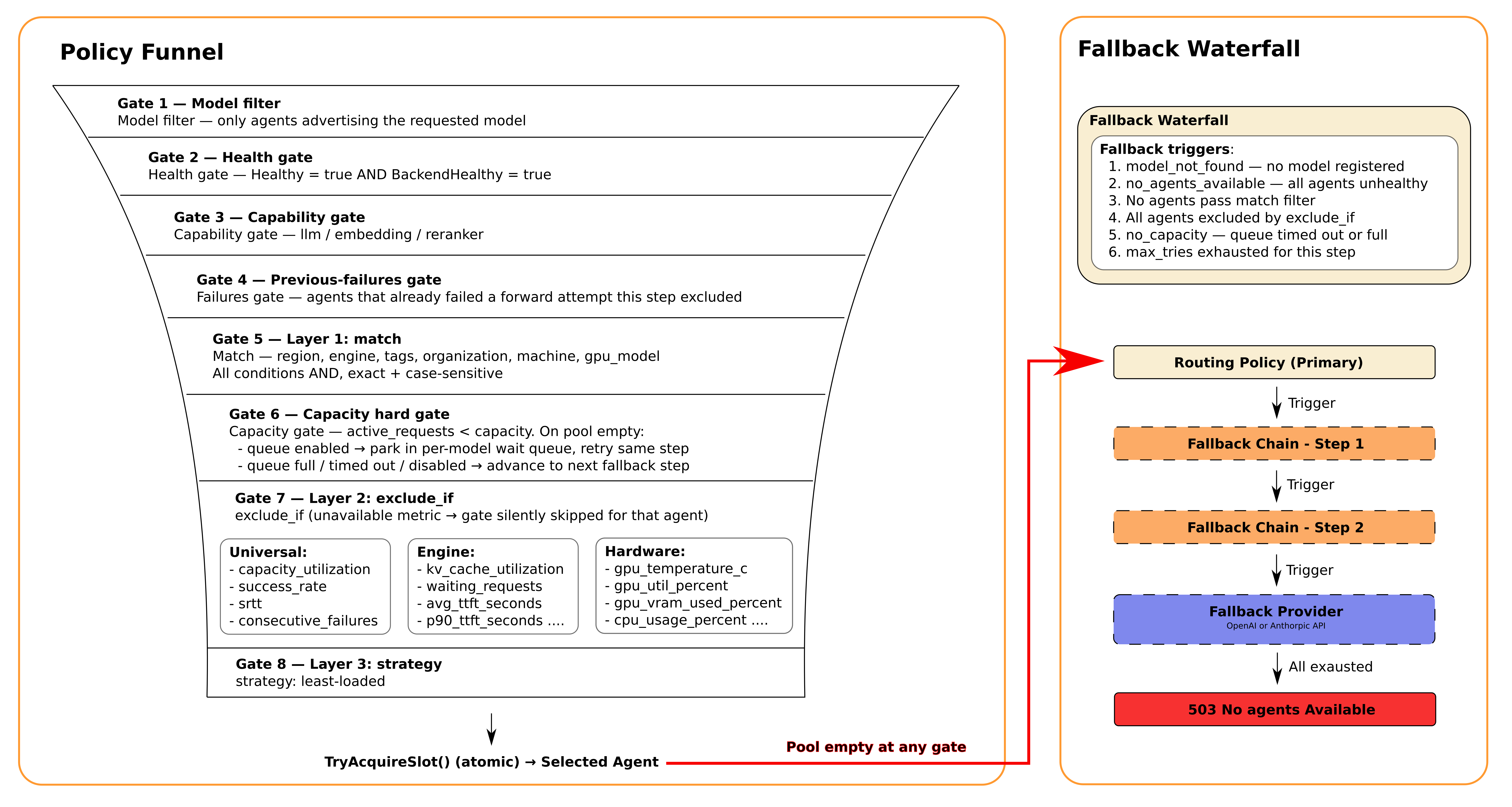

Routing at a glance

A request moves through these stages:

Match the requested model.
Remove unhealthy agents.
Match the required capability.
Apply the policy’s static match filters.
Remove agents that already failed during this policy step.
Remove agents at their declared capacity.
Apply live exclude_if gates.
Rank the remaining agents.
Acquire a capacity slot and forward the request.
Wait in the per-model queue when all matching agents are full.
Move to the next fallback step when the current step is exhausted.
Use an optional external provider fallback after all local steps fail.

The three configurable policy layers are:

Layer	Configuration	Purpose
Static matching	`match`	Select agents by metadata
Dynamic gates	`exclude_if`	Remove agents using live operational signals
Ranking	`strategy`	Choose among the remaining candidates

Model, health, capability, previous failures, and capacity are hard constraints. They apply even when the policy does not mention them.

Default routing behavior

When you do not configure a policy file, Hivenet Router uses:

routing_policy:
  match: {}
  strategy: least-loaded

The default policy:

accepts agents from any region, engine, organization, or machine
applies no optional metric gates
ranks matching agents by current load
uses the router’s global retry limit

The default retry limit is three forward attempts per policy step. You can change it with:

--max-tries-per-step 5

A policy step can override that value with its own max_tries.

Static matching

The match block filters agents by metadata reported during registration. All non-empty fields must match. The fields use AND logic.

routing_policy:
  match:
    region: EU-France
    engine: vllm
    tags:
      - production
      - high-memory
    organization: ml-team
    machine: gpu-worker-1
    gpu_model: RTX4090
  strategy: least-loaded

Match fields

Field	Agent metadata	Example
`region`	Operator-defined region	`EU-France`
`engine`	Backend integration	`vllm`
`tags`	Operator-defined labels	`production`
`organization`	Team, owner, or provider	`ml-team`
`machine`	Stable machine identifier	`gpu-worker-1`
`gpu_model`	GPU model reported by the agent	`RTX4090`

All comparisons are exact and case-sensitive. For example:

region: EU

does not match:

EU-France

Tag matching

When a policy lists several tags, the agent must contain every listed tag. This policy:

match:
  tags:
    - production
    - high-memory

matches an agent registered with:

production,high-memory,a100

It does not match an agent that has only:

production

The agent may contain additional tags that are not listed in the policy.

Match every agent

Use an empty match block when the step should accept any agent that passes the hard constraints:

match: {}

You can also omit fields that you do not want to restrict.

Dynamic gates

The exclude_if block removes agents whose live metrics cross configured thresholds.

exclude_if:
  kv_cache_utilization:
    gt: 0.85
  gpu_temperature_c:
    gt: 82
  success_rate:
    lt: 0.95
  srtt:
    gt: 500

An agent is excluded when any configured gate is violated. The available comparison operators are:

Operator	Excludes the agent when
`gt`	Value is greater than the threshold
`gte`	Value is greater than or equal to the threshold
`lt`	Value is less than the threshold
`lte`	Value is less than or equal to the threshold

Each field must define exactly one operator:

success_rate:
  lt: 0.95

This is invalid:

success_rate:
  lt: 0.95
  gt: 0.5

Hivenet Router validates gate names and operators when loading the policy. Unknown fields and rules with zero or several operators are rejected.

Missing metrics

A gate is skipped when its metric is unavailable for an agent. For example, this gate:

exclude_if:
  kv_cache_utilization:
    gt: 0.85

does not automatically exclude an Ollama agent that reports no KV-cache metric.

Missing metrics pass the gate.When a metric is required for safety or compliance, use static metadata to restrict the policy to engines or agents that are known to provide it.

For example:

match:
  engine: vllm

exclude_if:
  kv_cache_utilization:
    gt: 0.85

This prevents an agent without the expected vLLM metric set from entering the candidate pool.

Unit conventions

Policy values use these units:

Metric type	Policy unit
`srtt`	Milliseconds
`gpu_temperature_c`	Degrees Celsius
Utilization and percentage fields	Fraction from `0.0` to `1.0`
Request, queue, and failure fields	Absolute count
TTFT and ITL	Seconds

Prometheus may expose some hardware values on a 0 to 100 scale. Hivenet Router normalizes those values to 0.0 to 1.0 before evaluating routing policies. For example, use:

gpu_util_percent:
  gt: 0.95

to exclude an agent above 95% GPU utilization. Do not use:

gpu_util_percent:
  gt: 95

Universal gates

These signals can apply to every agent when the underlying history is available.

Field	Meaning	Example
`capacity_utilization`	Active requests divided by declared capacity	`{ gt: 0.8 }`
`success_rate`	Lifetime successful-request fraction	`{ lt: 0.95 }`
`srtt`	Smoothed round-trip time in milliseconds	`{ gt: 500 }`
`consecutive_failures`	Forward failures since the last success	`{ gte: 3 }`

Capacity utilization

exclude_if:
  capacity_utilization:
    gt: 0.8

This gate removes an agent once more than 80% of its declared capacity is in use. The hard capacity gate still removes an agent when:

active requests >= declared capacity

even when no capacity-utilization rule is configured.

For streaming responses, Hivenet Router releases the agent capacity slot when response headers arrive, while backend generation can continue. The active-request count is therefore a routing-admission signal, not a complete count of ongoing streams.

Success rate

exclude_if:
  success_rate:
    lt: 0.95

Success rate comes from Hivenet Router’s request history for the agent. A new agent with no request history has no success-rate value yet, so the gate is skipped until data exists.

Smoothed latency

exclude_if:
  srtt:
    gt: 500

srtt uses Hivenet Router’s RFC 6298 smoothed round-trip-time calculation. The value is measured in milliseconds. A new agent may not have an SRTT value until it has served requests.

Consecutive failures

exclude_if:
  consecutive_failures:
    gte: 3

The counter increases after application-level forwarding failures and resets after a successful request.

Engine gates

These values are available when the backend integration reports the relevant engine metrics. vLLM provides the fullest metric set. SGLang and metrics-enabled llama.cpp provide overlapping subsets. Other integrations may leave these values unavailable.

Field	Meaning	Example
`kv_cache_utilization`	KV or token-cache fraction in use	`{ gt: 0.85 }`
`running_requests`	Requests currently being processed	`{ gt: 50 }`
`waiting_requests`	Requests waiting in the engine scheduler	`{ gt: 10 }`
`avg_ttft_seconds`	Average time to first token	`{ gt: 2 }`
`p90_ttft_seconds`	P90 time to first token	`{ gt: 5 }`
`avg_itl_seconds`	Average inter-token latency	`{ gt: 0.1 }`
`p90_itl_seconds`	P90 inter-token latency	`{ gt: 0.2 }`

Not every backend provides every field. For example:

vLLM reports cache, running, waiting, TTFT, and ITL metrics.
SGLang reports cache, running, waiting, and TTFT metrics.
metrics-enabled llama.cpp reports cache, running, waiting, TTFT, and ITL metrics.
Ollama and custom engines do not currently provide these engine-specific signals.

Hardware gates

Hardware gates use the latest snapshot reported by the agent.

Field	Meaning	Example
`gpu_temperature_c`	Highest reported GPU temperature	`{ gt: 82 }`
`gpu_util_percent`	Highest GPU compute-utilization fraction	`{ gt: 0.95 }`
`gpu_vram_used_percent`	Highest GPU VRAM-used fraction	`{ gt: 0.9 }`
`memory_used_percent`	System-memory-used fraction	`{ gt: 0.9 }`
`cpu_usage_percent`	CPU-utilization fraction	`{ gt: 0.9 }`

When an agent reports several GPUs, Hivenet Router evaluates the highest temperature, utilization, and VRAM-use value across those GPUs. For example:

exclude_if:
  gpu_temperature_c:
    gt: 82
  gpu_vram_used_percent:
    gt: 0.9
  memory_used_percent:
    gt: 0.9

A CPU-only agent has no GPU values, so GPU gates are skipped for that agent.

Ranking strategy

After matching and gates, Hivenet Router ranks the surviving agents. The only implemented strategy is:

strategy: least-loaded

least-loaded ranks agents by:

active requests / declared capacity

The agent with the lowest ratio is selected first. For example:

Agent	Active requests	Capacity	Load ratio
A	4	20	`0.20`
B	8	20	`0.40`
C	5	10	`0.50`

Agent A ranks first. Agents must register a positive capacity. Non-positive values are rejected before the agent joins the routing pool. When two agents have the same ratio, Hivenet Router currently resolves the tie using the deterministic peer-ID order returned by the registry. This is stable for a given set of peer IDs, but it is not round-robin and should not be used as client affinity. The following strategies are not implemented:

lowest-srtt
round-robin
prefix-aware
lowest-kv-cache
lowest-queue
best-ttft
best-itl

A policy using one of these names is rejected at load time.

Forward attempts

Each policy step has a forward-attempt budget.

routing_policy:
  strategy: least-loaded
  max_tries: 3

When max_tries is zero or omitted, the step uses the router’s global value:

--max-tries-per-step 3

A try is consumed when Hivenet Router forwards to an agent and receives a retryable forwarding failure. Examples include:

backend unavailability
backend overload or rate-limit responses
retryable backend errors
transport failures after connection recovery is exhausted

Request-level failures such as request_invalid, invalid_parameter, context_length_exceeded, and token_limit_exceeded stop the routing session immediately. They do not consume additional tries or advance through other local agents. Selection failures do not consume the budget. An agent that fails a forward attempt is excluded from further attempts within the same policy step. When the budget is exhausted, Hivenet Router advances to the next fallback step.

Connection-level recovery

Router-agent traffic uses a persistent connection initiated by the agent. A network interruption can leave the router with stale connection state even though the agent process is still running. Hivenet Router treats a connection-level agent_disconnected failure differently from a backend response. For the first connection-level failure involving one agent and request, the router:

discards its stale peer connection state
retries the request path without consuming the step’s max_tries budget

This budget-free recovery is limited to one attempt per agent for each request. If the connection is still unavailable, the failure returns to the normal retry and fallback process. The agent’s own reconnect loop is responsible for re-establishing its outbound connection to the router. Application-level errors do not trigger connection recovery because the agent returned a response over a working transport. Connection resets increment:

hivenet_router_agent_connection_resets_total

A sustained increase may indicate repeated network interruption or agent reconnects.

Capacity wait queue

When healthy, policy-matching agents exist but all of them are at capacity, Hivenet Router can place the request in a per-model wait queue. Defaults:

Setting	Default
Queue depth	30 waiting requests per model
Wait deadline	Router request timeout
Request timeout	60 seconds

Configure the queue depth:

--queue-depth 50

Disable it:

--queue-depth 0

Change the request timeout:

--request-timeout 2m

While waiting, the request resumes when an agent releases a capacity slot. Hivenet Router then evaluates the candidates again. The request does not reserve a particular agent while it waits. If the queue is full or the request deadline expires, Hivenet Router moves to the next fallback step.

The queue is keyed by model. Traffic for one model does not consume another model’s queue depth.

Fallback chains

A fallback chain defines ordered local alternatives.

routing_policy:
  match:
    region: EU-France
    engine: vllm
  strategy: least-loaded
  max_tries: 3

fallback_chain:
  - name: any-eu-vllm
    match:
      engine: vllm
    exclude_if:
      success_rate:
        lt: 0.9
    strategy: least-loaded
    max_tries: 2

  - name: any-engine
    match: {}
    strategy: least-loaded
    max_tries: 2

The primary routing_policy is always evaluated first. Each item in fallback_chain is another complete policy step with its own:

name
static filters
dynamic gates
strategy
retry budget

The step name appears in logs and policy metrics. When no name is provided, Hivenet Router generates one based on its position in the chain. Hivenet Router advances to the next step when:

no agent is registered for the requested model
all registered agents are unhealthy
no agent matches the required capability
no agent passes the static filters
every remaining agent violates a dynamic gate
matching agents stay at capacity until the queue is full or times out
application-level forward failures exhaust max_tries

Model and capability remain hard constraints throughout the chain. A fallback step cannot send a request to an agent serving another model or workload type.

Provider fallback

A policy can define one final external provider after every local step has been exhausted.

fallback_provider:
  engine: openai
  model: gpt-4o-mini

Supported providers are:

openai
anthropic

Set the corresponding router credential:

export HIVENET_ROUTER_OPENAI_API_KEY="<openai-api-key>"

or:

export HIVENET_ROUTER_ANTHROPIC_API_KEY="<anthropic-api-key>"

fallback_provider is a top-level policy field. It is not an entry inside fallback_chain.

Provider fallback is intended for non-streaming Chat Completions requests. It is not used for embeddings or reranking, and it is not a transparent fallback for Anthropic token counting or every Messages field.

The configured provider model replaces the model from the original client request. For OpenAI, Hivenet Router sends an OpenAI Chat Completions request. For Anthropic, Hivenet Router translates the supported OpenAI-style chat request into the Anthropic Messages format and converts the response back into an OpenAI-compatible chat response. Provider fallback is non-streaming and supports only the fields handled by the provider adapter. Treat it as a final continuity mechanism rather than a transparent equivalent of every local backend feature. See Provider fallback for the complete configuration and limitations.

Exact evaluation order

For each policy step, Hivenet Router evaluates agents in this order:

Model filter
Load agents registered for the requested model.
Health gate
Remove agents marked unhealthy or reporting an unhealthy backend.
Capability gate
Remove agents that do not serve the required llm, embedding, or reranker capability.
Static match
Apply region, engine, tags, organization, machine, and gpu_model.
Previous failures
Remove agents that already produced a forward failure in the current step.
Capacity gate
Remove agents whose active requests are greater than or equal to their declared capacity.
Dynamic gates
Apply the configured exclude_if thresholds.
Strategy ranking
Rank the remaining candidates with least-loaded.
Atomic slot acquisition
Attempt to reserve one capacity slot on the selected agent.
Retry selection after a race
If another request acquired the final slot first, select again without consuming a forward try.
Wait queue
If all eligible agents are full and queueing is enabled, wait for capacity and evaluate again.
Fallback progression
Move to the next step when there are no candidates or the forward-attempt budget is exhausted.
Provider fallback
For supported language-model requests, call the configured external provider after every local step is exhausted.

Production example

# Primary: production vLLM agents in France
routing_policy:
  match:
    region: EU-France
    engine: vllm
    tags:
      - production

  exclude_if:
    kv_cache_utilization:
      gt: 0.85
    gpu_temperature_c:
      gt: 82
    success_rate:
      lt: 0.95
    srtt:
      gt: 500

  strategy: least-loaded
  max_tries: 3

# Fallback: any vLLM region with relaxed health thresholds
fallback_chain:
  - name: any-vllm-region

    match:
      engine: vllm

    exclude_if:
      success_rate:
        lt: 0.9

    strategy: least-loaded
    max_tries: 2

# Last resort for language-model chat requests
fallback_provider:
  engine: openai
  model: gpt-4o-mini

This policy:

prefers production vLLM agents in EU-France
excludes agents with high cache pressure, temperature, latency, or failure rates
falls back to vLLM agents in any region
uses OpenAI only after local routing is exhausted

Observe routing decisions

Policy and routing metrics are available through the router’s Prometheus endpoint. Inspect policy-related metrics:

curl http://localhost:2112/metrics \
  | grep hivenet_router_policy

Inspect routed requests:

curl http://localhost:2112/metrics \
  | grep hivenet_router_routing_requests_routed_total

Inspect stale-connection resets:

curl http://localhost:2112/metrics \
  | grep hivenet_router_agent_connection_resets_total

When a complete policy chain is exhausted, the router logs which gate drained each step’s candidate pool. Enable policy debug logging for more detail:

export GOLOG_LOG_LEVEL="policy=debug,router=debug"

Troubleshooting

The policy does not load

Check the router logs for validation errors. Common causes include:

missing strategy
an unknown strategy
a misspelled exclude_if field
no comparison operator
several operators on one gate
an incomplete provider fallback
invalid YAML indentation

Only least-loaded is currently accepted as a strategy.

An agent does not match

All match values are exact and case-sensitive. Compare the policy with live metadata:

curl \
  -H "Authorization: Bearer <admin-api-key>" \
  http://localhost:8080/admin/routing-table \
  | jq '.agents[] | {
      model: .metadata.model,
      engine: .metadata.engine,
      region: .metadata.region,
      organization: .metadata.organization,
      machine: .metadata.machine,
      tags: .metadata.tags,
      gpu_model: .metadata.gpu_model
    }'

Check that every tag in the policy appears on the agent.

A metric gate does not exclude an agent

The metric may be unavailable. Inspect the agent through the routing table and confirm that the relevant engine or hardware field is present. Missing metrics skip the gate.

Requests wait instead of falling back

Matching agents may exist but be at capacity. Hivenet Router waits in the per-model queue before advancing to fallback. Reduce or disable the queue when immediate fallback is more appropriate:

--queue-depth 0

An external provider is never called

Check that:

every local policy step was exhausted
the request is a language-model chat request
fallback_provider is at the policy’s top level
the engine is openai or anthropic
the corresponding environment variable is configured
the provider model is not empty

Next steps

Policy YAML reference

Review the complete policy schema, fields, operators, and validation rules.

Fallback chains

Configure ordered local alternatives and retry budgets.

Provider fallback

Add OpenAI or Anthropic as a final fallback for chat requests.

​Routing at a glance

​Default routing behavior

​Static matching

​Match fields

​Tag matching

​Match every agent

​Dynamic gates

​Missing metrics

​Unit conventions

​Universal gates

​Capacity utilization

​Success rate

​Smoothed latency

​Consecutive failures

​Engine gates

​Hardware gates

​Ranking strategy

​Forward attempts

​Connection-level recovery

​Capacity wait queue

​Fallback chains

​Provider fallback

​Exact evaluation order

​Production example

​Observe routing decisions

​Troubleshooting

​The policy does not load

​An agent does not match

​A metric gate does not exclude an agent

​Requests wait instead of falling back

​An external provider is never called

​Next steps

Policy YAML reference

Fallback chains

Provider fallback

Routing at a glance

Default routing behavior

Static matching

Match fields

Tag matching

Match every agent

Dynamic gates

Missing metrics

Unit conventions

Universal gates

Capacity utilization

Success rate

Smoothed latency

Consecutive failures

Engine gates

Hardware gates

Ranking strategy

Forward attempts

Connection-level recovery

Capacity wait queue

Fallback chains

Provider fallback

Exact evaluation order

Production example

Observe routing decisions

Troubleshooting

The policy does not load

An agent does not match

A metric gate does not exclude an agent

Requests wait instead of falling back

An external provider is never called

Next steps
